Introduction

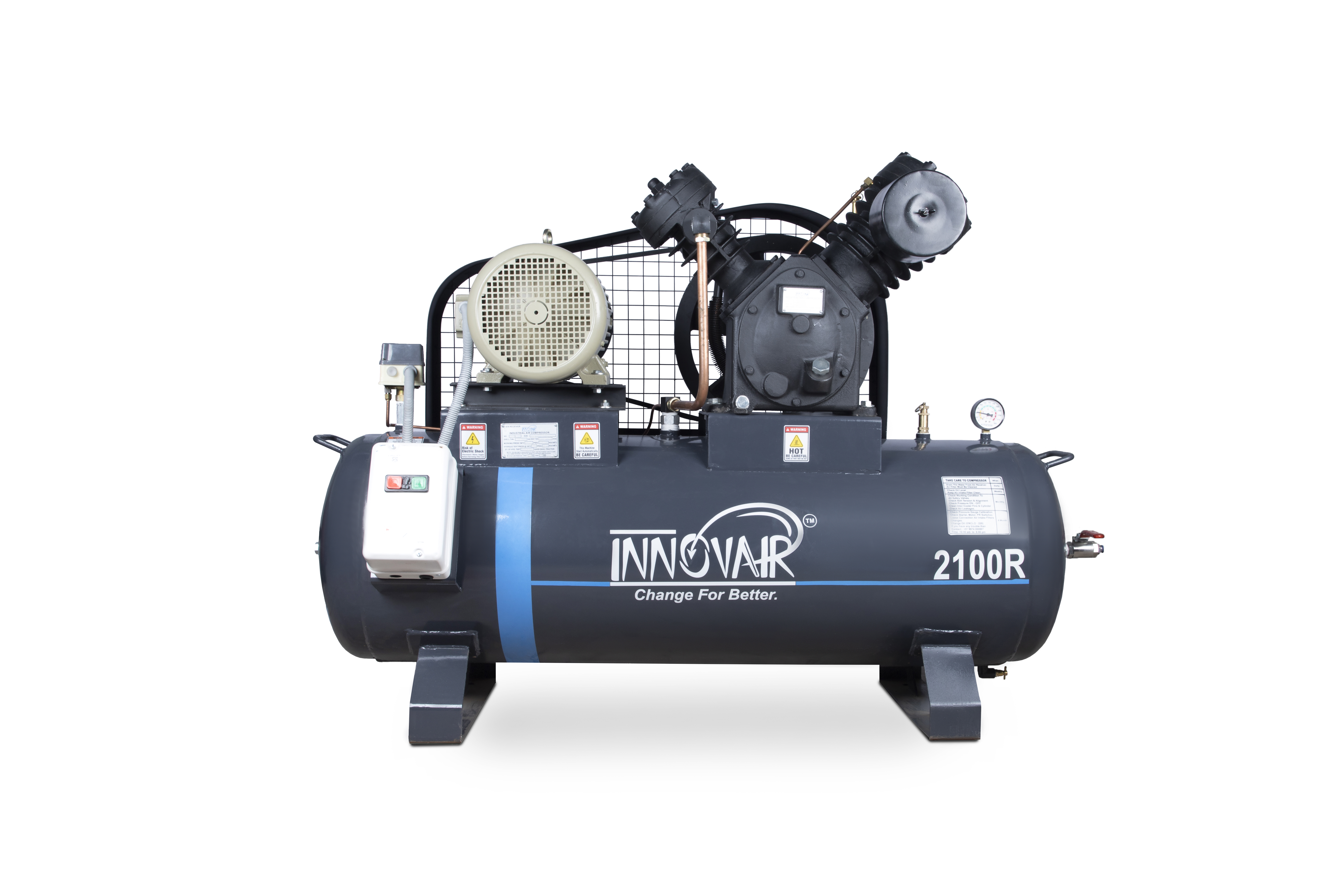

Heavy duty Reciprocating Air Compressor is a positive displacement air compressor in which air is sucked in a chamber and compressed with the help of a reciprocating piston. It is called as positive displacement compressor because air is first sucked in a chamber and then compression is achieved by decreasing area of the chamber. The area is decreased by a piston which does reciprocating motion.

Working Principle

In reciprocating air compressor, as the piston moves towards the BDC, the air is sucked into the cylinder from the atmosphere and when it moves towards the TDC, the compression of the air starts and keeps on going and pressure increases. When the pressure increases upto its design limit it pushes the discharge valve to open and the compressed air is delivered to the storage tank.

Features

• Versatility: Reciprocating compressors are versatile and can handle a wide range of applications, from powering pneumatic tools to serving as a vital component in industrial processes.

• Durable Construction: Built with robust materials and precision engineering, piston compressors are known for their durability, ensuring a long operational life and minimal maintenance requirements.

• Adjustable Speed: Many reciprocating compressors feature adjustable speed settings, allowing users to tailor the output to specific requirements, thereby optimizing energy efficiency.

• Compact Design: These compressors often come in compact designs, making them suitable for installations in limited spaces.

Benefits

• High Efficiency: Reciprocating compressors deliver high efficiency in converting electrical power into compressed air, minimizing energy wastage.

• Cost-Effective: Initial acquisition costs and maintenance expenses are typically lower compared to other compressor types, making reciprocating compressors a cost-effective solution.

• Adaptability: They can adapt to fluctuating demand, responding efficiently to varying air consumption requirements.

• Reliability: Known for their reliability, reciprocating compressors provide consistent performance in demanding industrial environments.

The Types of Reciprocating Air Compressors Include:

• 1. Single-Acting Reciprocating Compressor: • These compressors operate by compressing air on one side of the piston and then reversing direction to exhaust the compressed air. They are simple and cost-effective but less efficient than other types.

• 2. Double-Acting Reciprocating Compressor: • These compressors compress air on both sides of the piston, allowing for more efficient operation and higher pressure outputs. They are commonly used in industrial settings where high-pressure air is required.

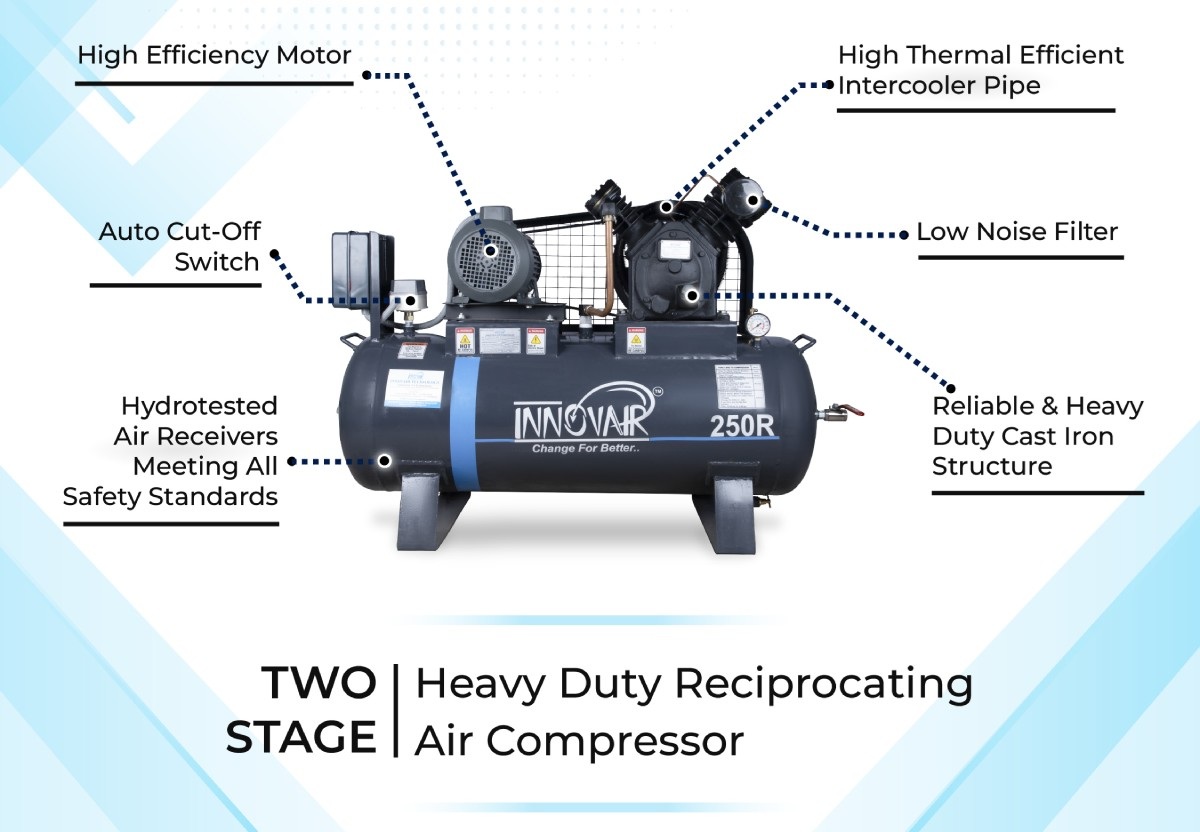

• 3. Two-Stage or Dual-Stage Reciprocating Compressor: • In this type, there are two cycles of compression occurring in two cylinders that are connected in series. The gas is compressed in one cylinder (first stage), and the discharged gas is further compressed in the second cylinder (second stage), to a higher pressure

• 4. High-Speed (Separable) vs. Low-Speed (Integral) Reciprocating Compressors: • The high-speed category is also referred to as separable, and the low-speed category is known as integral. The American Petroleum Institute (API) has produced two industry standards, API Standard 11P and API Standard 618, which govern the design and manufacture of reciprocating compressors

• 5. In-Line Reciprocating Compressor: • This type has the cylinders of various stages arranged in a straight line when viewed from the top. It is often used in tasks that call for varying pressure

• 6. Diaphragm Compressors: These compressors use a flexible diaphragm instead of a piston to compress air. They are known for their high efficiency, low noise levels, and minimal maintenance requirements.

• 7. Tandem Piston Compressors: These compressors use two pistons in a single cylinder to compress air. They are designed for high-pressure applications and offer improved efficiency and reliability compared to single-acting compressors.

• 8. Direct-Drive Compressors: These compressors use a direct drive mechanism to connect the motor to the compressor, eliminating the need for belts or gears. They offer improved efficiency, reliability, and reduced maintenance needs.

These types of reciprocating air compressors cater to diverse industrial needs and are designed to provide efficient, reliable, and sustainable compressed air solutions

Applications:

Reciprocating compressors are commonly used for applications where low flow rate and high pressure of the gas are required, such as in railway and road vehicle air brake systems, oil refineries, gas pipelines, oil and gas production drilling and well services, air and nitrogen injection, offshore platforms, chemical plants, natural gas processing plants, air conditioning, and refrigeration plants

Industrial Uses:

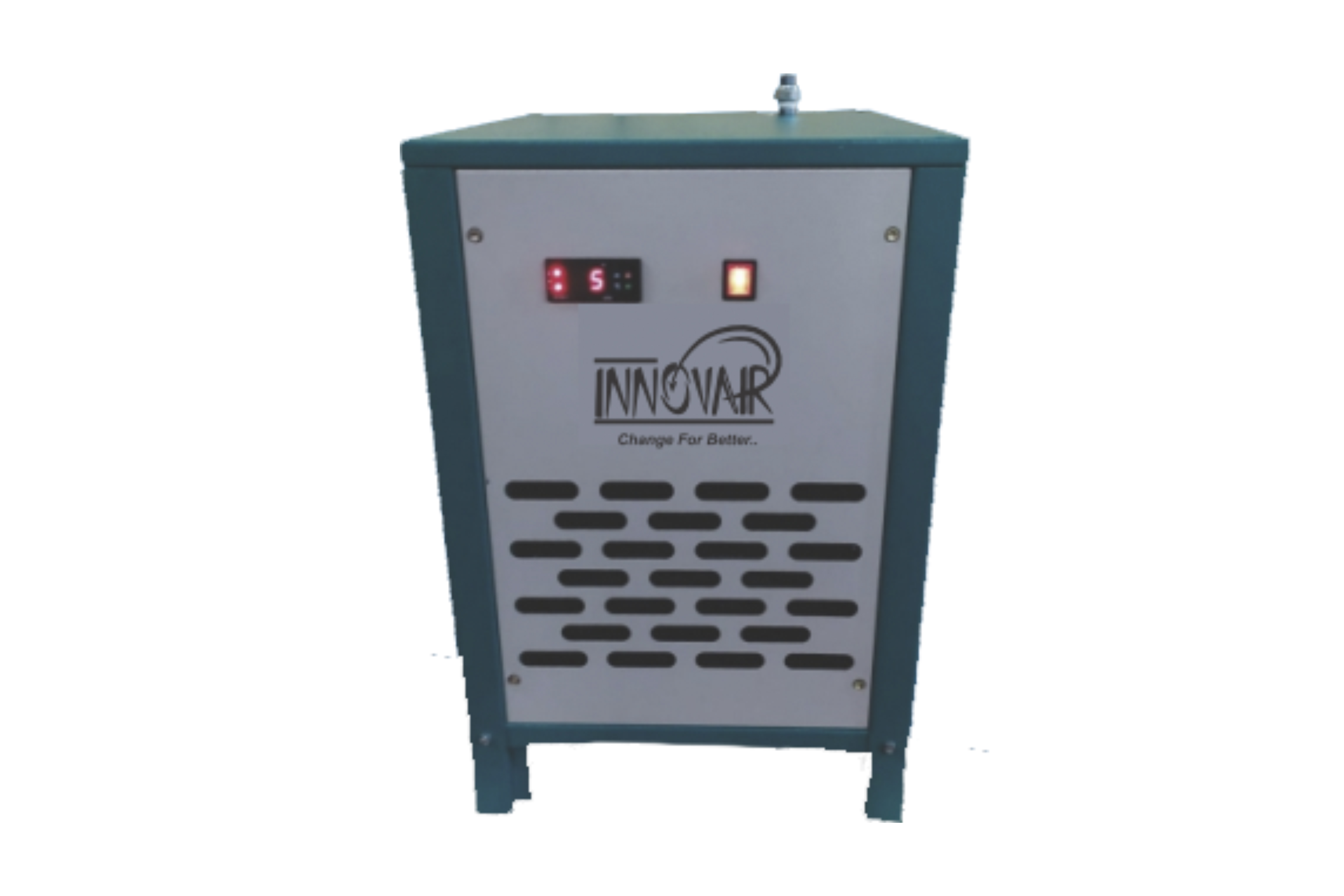

Refrigerated Air Dryers find widespread applications across various industries, including manufacturing, automotive, food, pharmaceuticals, and beverage, and more. They play a crucial role in processes such as painting, pneumatic tool operation, CNC machining, and packaging, where dry and clean compressed air is essential for precision and efficiency.
